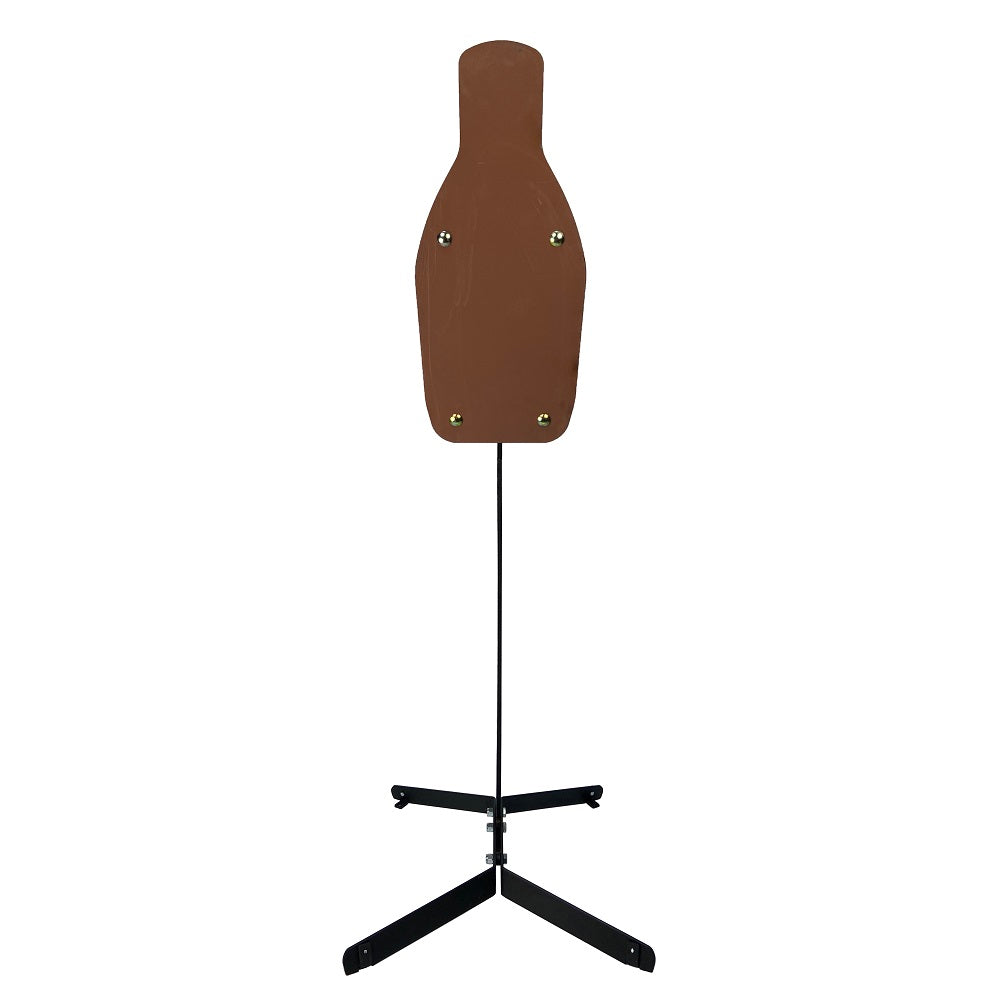

Short Range AR550 Rifle Target - FBI Q

Highlights

• Ultra durable PATENT PENDING design has no welds
• Rated for all handguns and rifles with velocities up to 3,000 fps at the target
• Minimum distance: Handguns = 10 yards  |  Rifles = 30 yards (read all safety guidelines)
• Laser cut AR550 steel target assembly slips onto 3/8" AR500 Armor Post with no tools
• Heavy duty legs constructed of 1/4" steel with durable black powder coat finish
• Industrial grade compression springs produce maximum reverberation and visual feedback
• Plate size matches the FBI Q qualification target (approximately 12-1/2" Wide x 27-5/8" High)
• Target system breaks down into three pieces without tools for easy transportation and storage
• Designed to safely deflect bullet fragments into the ground (adjustable forward angle: 20-30 degrees)
• Overall height of target is approximately 69-1/2"
• Light weight and portable (heaviest section weighs 26 lbs.)
• This product is compatIble with our Steel Smart Target system
• Description

Our new Short Range Rifle Targets allow shooters to engage steel targets with rifle calibers at distances as close as 30 yards! (Follow all safety instructions).

The short range capability of these targets has been frequently requested by law enforcement, military and other training applications but hasn’t been possible until now! Our PATENT PENDING design utilizes certified AR550 steel and a revolutionary mounting system that precisely controls the angle of the plate so the energy is both deflected and absorbed.

The base of the target allows the user to adjust the forward angle of the plate between 20-30 degrees. Our plates are mounted using four industrial compression springs to dissipate the energy, reduce pitting and prevent the common problem of cracking that can be experienced with other AR550 target systems.

The target plate is attached to a 3/8” thick AR500 steel post using a quick-release system that allows the plate to be removed in seconds without tools.  The base of the target has a pocket that secures the vertical post and allows the post to be removed from the base without tools.  The system breaks down into three sections for compact storage and easy transportation. Four 12” ground stakes and four extra, grade 8 carriage bolts are included with each target.

Specifications

Target Plate: 27.62" tall x 12.50" wide x 3/8" thick AR550 steel - primer coated finish
Armor Post: 3/8" thick x 2" wide AR500 steel - black painted finish
Base Construction: 1/4" thick steel - black powder coat finish
Plate Hardware: 1/2"-13 x grade 8 carriage bolts (Qty 8 included)
Ground Stakes: 12" long x 3/8" diameter (Qty 4 included)
Base Dimensions: 27" long x 22" wide (35" diagonal)
Overall Height: Approximately 69.50" (at full upright position)
Product Weight: 61 lbs.
